Niobium Tube / Pipe

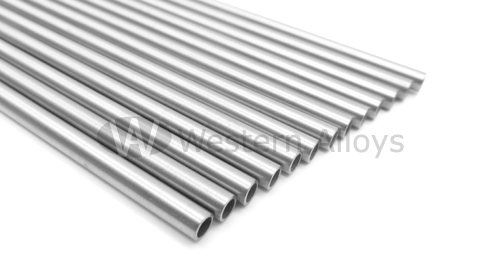

niobium tube

Niobium Tube / Pipe processing technology

It usually takes two times of extrusions in the processing of Niobium Tube / Pipe. After the first extrusion, the plasticity of Niobium alloy was significantly improved. Especially after recrystallization annealing, not only the second extrusion can be carried out, but also other pressure processing can be carried out at a lower temperature.

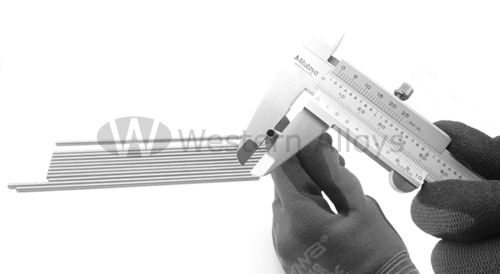

niobium pipe

Application of Niobium Tube / Pipe

Niobium and Niobium alloy tubes have the characteristics of high melting point, good corrosion resistance, cold working performance. They are widely applied in chemical industry, electronics industry, aviation and aerospace industry, mainly used in the production of high pressure sodium lamp, aviation and aerospace engine structure material, chemistry reaction vessel, heat exchanger tube, reactor internal components and coating materials. Adding Zirconium into Niobium can significantly improve the oxidation resistance and strength of the material.

  • Request A Quote

    • Properties of Niobium Tube / Pipe

    ASTM B394 Main composition of Niobium Tube Other impurities Max%
    Nb Fe Si Ni W Mo Ti Ta O C H N
    R04210 balance 0.004 0.004 0.002 0.005 0.005 0.002 0.05 0.012 0.0035 0.0012 0.003
    Physical Properties of Niobium Tube / Pipe
    ASTM B394 Tensile strength,Min, psi(Mpa) Yield strength (0.2% residual deformation) Elongation (2.54cm standard distance)
    R04200
    R04210    		 18000psi (125Mpa) 12000psi (85Mpa) 25%

    Our Niobium Tube / Pipe products

    Western Alloys produces pure Niobium Tube / Pipe, Niobium Rotating Target, Niobium-Titanium Tube and other Niobium alloy tubes.
    All our Niobium Tube / Pipe products comply with ASTM B394 and other international standards. If you have any special request, our team would like to discuss with you for the best solutions.
