Ta-10W

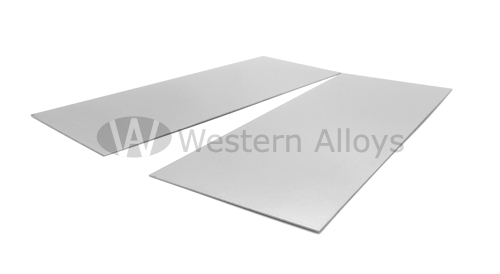

Ta 10W sheet

Processing technology and application of Tantalum 10 Tungsten(Ta-10W)

The key of Ta-10W processing is the cogging. It can be used in a set of forging extrusion and package or use canned extruding into bar (glass powder lubrication), and then made the slab by heating (choose high temperature anti-oxidation coating protection), remove the defects and machined surface oxidation layer, and then warm rolling, pickling, vacuum annealing, cold-rolled, vacuum annealing.

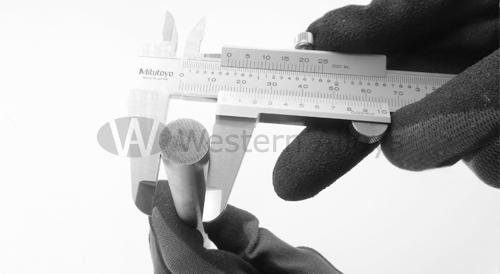

Ta 10W rod

Ta-10W applications

Ta-10W can be used as fasteners for corrosion protection in the chemical industry.
Ta-10W Pipe is more resistant to high temperature and mineral acid corrosion than many other materials and is mainly used in the manufacture of reaction vessels, heat exchangers, pipes and thermocouple pipes for chemical processes.

  • Request A Quote

    • Properties of Ta-10W

    R05255 Ta-10W
    Quantitative analysis
    Element W C N H O Nb Fe Ti Mo Si
    Concentration (%) 9.0~11.0 0.01 0.01 0.0015 0.01 0.1 0.01 0.01 0.02 0.005
    Element Ni
    Concentration (%) 0.01 　 　 　 　 　 　 　 　 　
    Physical properties of Tantalum 10 Tungsten alloys
    Grade Nominal component (mass fraction) Physical properties
     Melting point/℃ Density
    /g.cm-3    		 Linear expansion coefficient/K-1 Recrystallization temperature/℃ Annealing temperature
    /℃    		 Ductile brittle
    transition temperature/℃
    Ta-10W Ta-10W-0.3Mo-0.1Nb 3033 16.84 3.74X106 (1649℃) 1316-1538 1203-1232 -196
    Mechanical properties of Tantalum 10 Tungsten alloys
    Grade Modulus of elasticity/Gpa Yield Strength/Mpa Tensile Strength/Mpa Elongation for 50.8mm/% Material form
    Ta-10W 203.89 471.1 562.5 25 All kinds of forms
    R05255 Ta-10W
    Quantitative analysis
    Element W C N H O Nb Fe Ti Mo Si
    Concentration (%) 9.0~11.0 0.01 0.01 0.0015 0.01 0.1 0.01 0.01 0.02 0.005
    Element Ni
    Concentration (%) 0.01 　 　 　 　 　 　 　 　 　

    Our Ta-10W products

    Western Alloys produces Tantalum 10 Tungsten products such as Ta10W Sheet (ASTM B708 R05255), Ta10W Foil (ASTM B708 R05255), Ta10W Bar (ASTM B365 R05255), Ta10W Wire (ASTM B365 R05255), Ta10W Tube (ASTM B521 R05255) and other form of products.
