High Purity Zirconium

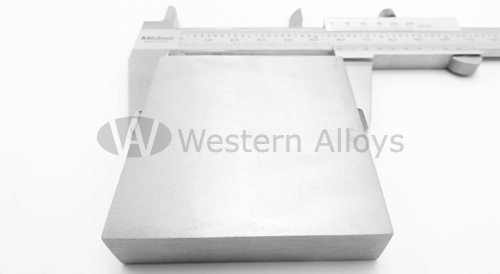

High purity zirconium sheet

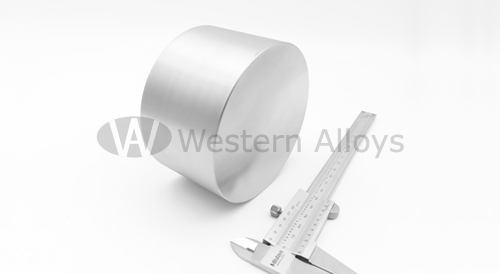

High purity zirconium rod
  • Request A Quote

    • Application of high purity Zirconium

    High purity Zirconium can be used in nuclear industry and the processing of sputtering targets.

    Mechanical properties of high purity Zirconium

    Mechanical properties of high purity Zirconium Rod / Bar tested in the longitudinal direction
    Grade Condition Direction of test Temperature Tensile strength,min, ksi (MPa) Yield trength (0.2% Offset), min, ksi (MPa) Elongation in 2 in. or 50mm, min, %
    UNS R60001 annealed longitudinal room temperature 42 (290) 20 (140) 18
    transverse room temperature 42 (290) 30 (205) 18

    Our Zirconium Sheet specifications and standard followed

    Mechanical properties of high purity Zirconium Sheet / Plate tested in the longitudinal direction
    Grade Condition Temperature Tensile strength,min, ksi (MPa) Yield strength (0.2% Offset), min, ksi (MPa) Elongation in 2 in. or 50mm, min, %
    UNS R60001 annealed room temperature 42 (290) 20 (140) 18

    Chemical composition of high purity Zirconium

    High purity Zirconium (nuclear grade Niobium) chemical composition
    Grade Al B Cd C Cr Co Cu Hf H Fe
    URS R60001 0.0075 0.00005 0.00005 0.027 0.020 0.0020 0.0050 0.010 0.0025 0.150
    Mg Mn Mo Ni N Si Sn W Ti U(Tot)
    0.0020 0.0050 0.0050 0.0070 0.0080 0.0120 0.0050 0.010 0.0050 0.00035
