Zirconium Foil / Strip

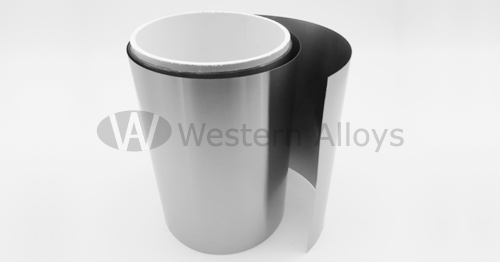

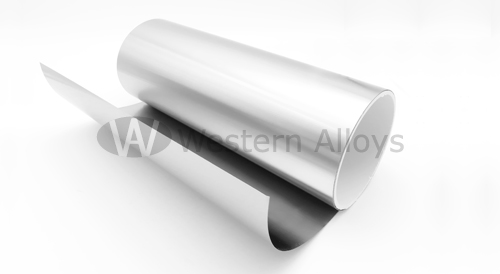

zirconium foil

Application of Zirconium Foil / Strip

Zirconium Foil / Strip is widely used in aerospace, military, nuclear reaction, atomic energy and other fields. It is also applied in the surgical and jewelry industry.

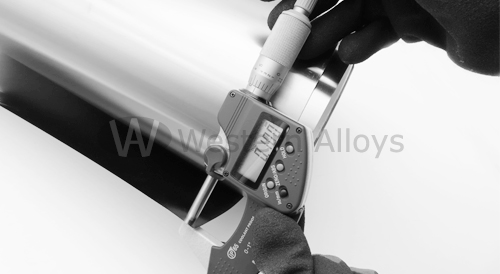

zirconium strip

Our Zirconium Foil / Strip specifications and standard

Dimension:
Thickness (mm) X Width (mm) X Length (mm)
(0.03-0.09) X (50-300) X (≥500)
(0.10-0.30) X (50-300) X (≥500)
(0.40-0.90) X (50-500) X (≥1000)
(1.0-2.0) X (50-500) X (≥2000)

Properties of Zirconium Foil / Strip

Mechanical properties of Zirconium Foil / Strip
ASTM B551 Tensile strength/MPa≥ Yield strength/MPa≥ Elongation (standard
distance 50mm)/%≥
Zirconium Foil
Zirconium Strip
R60702 380 205 16
R60704 415 240 14
R60705 550 380 16
R60706 510 345 14
All our Zirconium Foil / Strip products are in accordance with ASTM B551 and other international standards of Zirconium products. If you have any special request, we can discuss and find the best solution for you.
