Inconel 800

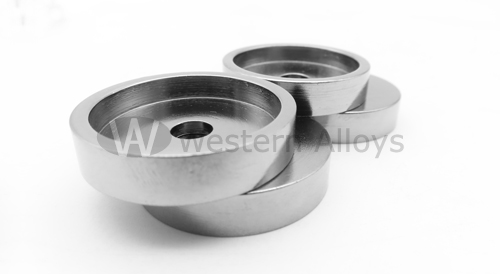

Inconel 800 Parts

Overview of Inconel 800

Inconel 800 is an alloy that typically contains 15-25% Cr, 30-45% Ni, and small amounts of Al and Ti.

This alloy has a high chromium content and sufficient nickel content, so it has a high temperature corrosion resistance, and is widely used in industry.

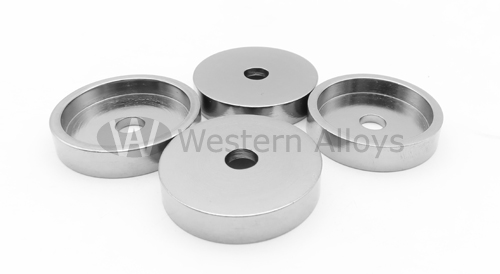

Inconel 800 Part

It has excellent stress corrosion cracking resistance in chloride, low concentration NaOH aqueous solution and high temperature and high pressure water, so it is used to manufacture stress corrosion cracking resistant equipment.

For example, chemical industry nuclear generators, nitric acid coolers, acetic anhydride cracking tube heat exchange equipment, heat exchange tube, these devices all use Incoloy800 alloy.

  • Request A Quote

    • Typical Chemical Calues(Weight %)

    Cr Ni C Si Mn P S Fe
    ≤
    19.0-23.0 30.0-35.0 0.1 1 1.5 0.03 0.015 Balance

    Mechanical Properties

    Temperature ℃ σb/ MPa σ0.2 / MPa δ5 /%
    100 425 140 160
    300 390 95 115
    500 360 80 100
    600 300 75 95
    Item Heat Treatment θ/°C Tensile Strengt σb/MPa Yield Strength σp0.2/MPa Elongation δ5%
    Hot rolled and forged bars, forgings Standard heat treatment (supply condition) 20 ≥515 ≥205 ≥30
    Hot rolled plate, cold rolled sheet, seamless pipe, cold rolled strip Standard heat treatment (supply condition) 20 ≥520 ≥205 ≥30
