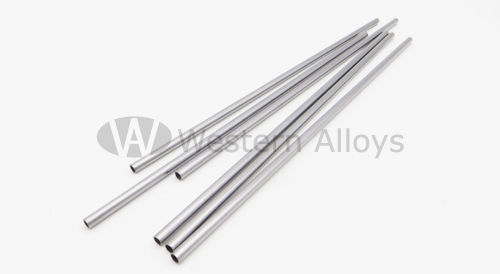

Ta-2.5W Tube

ta 2.5W tube

Application of Ta-2.5W Tube

Tantalum 2.5 Tungsten Tube is more resistant to high temperature and mineral acid corrosion than many other materials.
It has the features of high hardness, strength, abrasion resistance and corrosion resistance. Therefore, it is mainly used in the manufacture of reaction vessels, heat exchanger pipes and thermocouples in the chemical process.

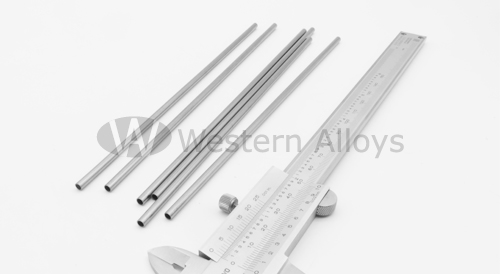

tantalum 2.5tungsten alloy tube

Our Ta-2.5W Tube products

Outer diameter:1.5-170mm
Wall thickness:0.2-5.0mm
Length:100-12000mm
Standatd:ASTM B521

ASTM standard mechanical properties of Tantalum 2.5 Tungsten Tube (annealed)

Grade Ultimate tensile strength/MPa Yield strength/MPa Elongation in 1" or 2"/%
R05252 ≥276 ≥193 ≥20
