C-103 Wire

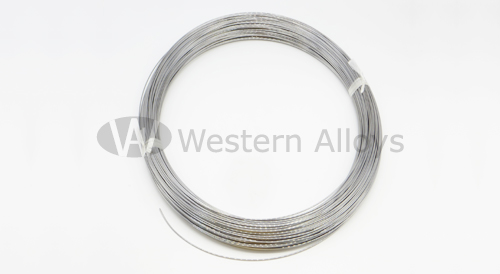

niobium C-103 alloy wire

Our C-103 Wire products

Dimension: diameter 0.1mm-3mm
Material: R04295(Nb-10Hf) C103
Standard: ASTM B655 R04295
Surface: polished

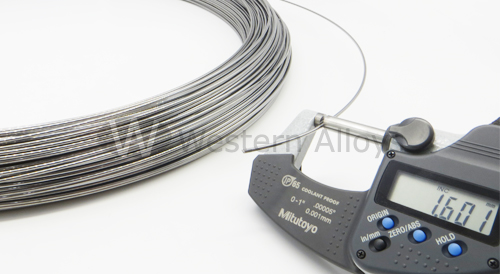

niobium hafnium alloy wire

Some popular dimensions:
C103 Wire Diameter 0.5mm
C103 Wire Diameter 1.57mm
C103 Wire Diameter 1.7mm
C103 Wire Diameter 2.36mm

  • Request A Quote

    • Properties of C-103 Wire

    Mechanical properties of C103 Wire, annealed condition(90% minimum recrystallized)
    Utimate tensile strength,min,psi(MPa) Yield strength(0.2% off-set), min, psi(MPa) Elongation in 1-inch(25-mm) gage length, min, %
    0.050 inch(1.27mm) and smaller in diameter
    Room temperature 56000(385) 40000(275) 20
    2000 +/-25°F(1100+/-15℃) 21000(145) 16000(110) 20
    0.051 inch(1.20mm) and larger in diameter
    Room temperature 54000(370) 38000(260) 20
    2000 +/-25°F(1100+/-15℃) 21000(145) 16000(110) 20
    Welding performance of Nb-10Hf-1Ti Wire
    Test temperature/℃ Argon Tungsten arc welding Electron beam welding
    Tensile strength Elongation/% Bending angle/(。) Tensile strength Elongation/% Bending angle/(。)
    Room temperature 416 26 72~180 465 28 >94
